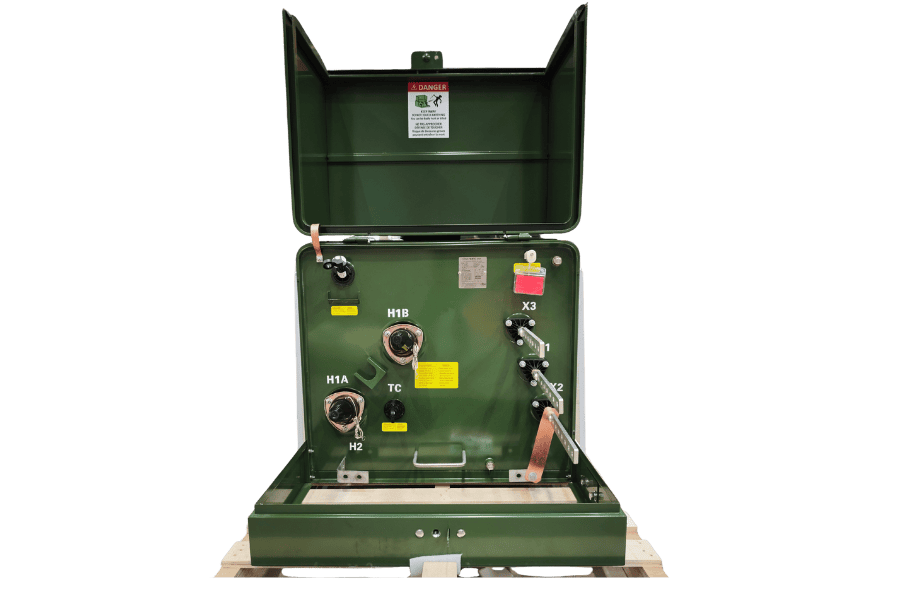

Compact, tamper-proof, liquid-filled design for reliable power distribution
With all key components in a compact enclosure, ETAC’s tamper-proof, liquid-filled, single-phase pad-mounted transformers meet the unique requirements of each project—oil-insulated, self-cooled, loop or radial feed, 25–167 kVA.
Single-Phase Pad Mounted Transformers manufacturer & dealer
SkyPower designs and supplies Single-Phase Pad Mounted Transformers in Canada that deliver reliable, efficient, and safe power distribution for utilities, industrial facilities, and renewable projects.
Each transformer is engineered to meet CSA and cULus requirements, ensuring durability and performance under Canada’s harsh environmental conditions.
Single-Phase Standard Specifications
- Rated Power: 25 kVA to 167 kVA
- Secondary Voltage: 120/240 V
- Type II non-PCB mineral oil (ONAN)
- Aluminum windings
- Pad-lockable door handle
- 65 °C temperature rise
- Off-circuit tap changer
- Bayonet fuse with drip guard
- Dead-front well and insert HV bushings
- Paddle/Spade or lug-connector type LV bushings
Key specs (typical)
- Primary Voltage:Δ or Y - 2400/4160 V to 27600/16000 V
- Secondary: Δ or Y — 120/240 V
- Phase: Single-phase · Frequency: 60 Hz
Optional Specifications
- Environmentally Friendly, High Fire-Point FR3 Oil (KNAN)
- Copper Windings
- Dual Voltage
- On-Off High Voltage Switch
Certifications
cULus (Listed for Canada & the U.S.)
Approved for use in Canada (CSA SPE-1000)
Warranty & After-Sales Support
All SkyPower transformers include a 12-month standard warranty, with optional coverage up to 3 years. Our service team provides technical support, replacement parts, and maintenance guidance nationwide.
Why companies choose SkyPower
Quality
Built with robust materials and precision-engineered cores. Each unit is inspected and tested to meet or exceed NEMA/ANSI standards.
Lead Time
Fast delivery windows supported by configurable inventory and local service partners—ideal for emergency and planned outages.
Customization
From OLTC to monitoring systems, we tailor ratings, terminations, and enclosures to your site and interconnection requirements.
Need a padmounted transformer?
Tell us your voltage, kVA/MVA, connection, and site conditions. Our engineers will configure a CSA-ready solution.
