Visible Load Break Transformer
Visible Load Break Transformer designed for overhead distribution. Available in single or three phase, oil-filled, with flexible configurations for residential and industrial networks.
CSA-ready, cULus listed options; engineered for Canadian climates (–40 °C with winter kits).
Trusted Visible Load Break Transformer manufacturer & dealer
SkyPower designs and supplies Visible Load Break Transformers in Canada that deliver reliable, efficient, and safe power distribution for utilities, industrial facilities, and renewable projects. Each transformer is engineered to meet CSA and cULus requirements, ensuring durability and performance under Canada’s harsh environmental conditions.
Remanufactured & new units to fit your project

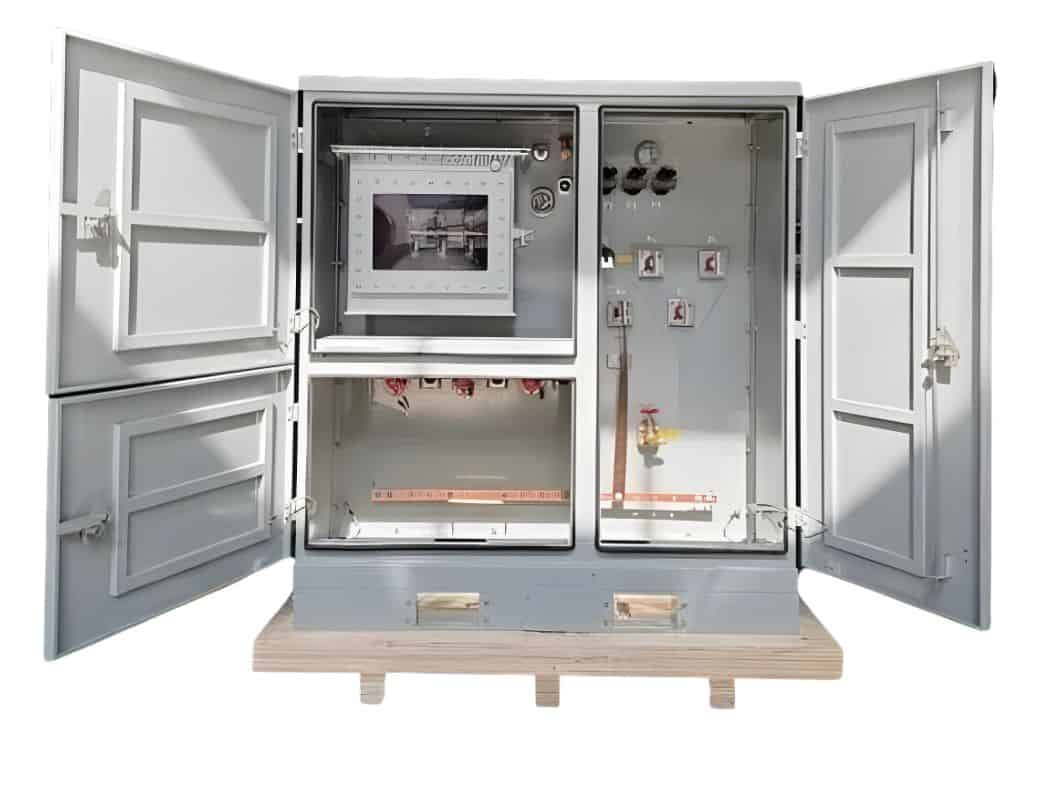

Skypower offers Visible Load Break Transformer (VLBT) integrates a load break switch with a mechanical viewing window, allowing operators to directly verify the open or closed position of the switch for enhanced safety and operational control. This design eliminates uncertainty during field operation, ensuring quick, reliable isolation and switching under standard medium-voltage distribution conditions.
The visible window provides clear mechanical indication of the switch state, while a gang-operated handle ensures simultaneous operation of all phases. Configurations are available in 2-position and 4-position variants to support both loop-feed and radial-feed distribution systems. Each unit is engineered and tested for consistent performance in Canadian utility, commercial, and industrial applications.Visible Break Transformer Standard Specification
- Rated Power: 75 kVA to 300 kVA
- Primary Voltage (Δ/Y): 4.16 kV to 34.5 kV
- Secondary Voltage (Δ/Y): 600Y/347 V, 480Y/277 V, 208Y/120 V
- Switch Configuration: 2-position / 4-position Load Break Switch
- Operation: Gang-operated handle with mechanical viewing window
- Insulating Fluid: Mineral Oil (ONAN)
- Winding Material: Aluminum or Copper
- Enclosure: Tamper-proof, pad-mounted, outdoor-rated
Custom ratings, terminations, and accessories are available on request.
Certifications
cULus (Listed for Canada & the U.S.)
CSA / IEEE compliant build options
Warranty & Lead Time
Standard 12-month warranty, optional coverage up to 3 years. Typical lead time ≤ 16 weeks, supported by nationwide service.
Why teams choose SkyPower
Quality
Built with robust materials and precision-engineered cores. Each unit is inspected and tested to meet or exceed NEMA/ANSI standards.
Lead Time
Fast delivery windows supported by configurable inventory and local service partners—ideal for emergency and planned outages.
Customization
From OLTC to monitoring systems, we tailor ratings, terminations, and enclosures to your site and interconnection requirements.
Need a Visible Load Break Transformer?
Share your primary/secondary voltages, kVA, connection, and site conditions. Our engineers will configure a CSA-ready solution.
